Why This Product

Product Highlights

Compact Powerhouse: 72 Channels in a Single Bay — The DM7C packs an incredible 72 mixable channels into a compact, single-bay chassis that fits into spaces where other high-channel-count consoles can't.
Advanced Connectivity: 144x144 Dante & 18x18 USB — Additionally, the 18x18 USB audio interface allows for direct multitrack recording and playback with your DAW, making it a powerful studio centerpiece.
Intuitive, Fast Workflow with Triple Touchscreens — Features like Split Mode, which creates two virtual mixers in one, and AI-assisted functions streamline the most complex workflows for a single operator.
Yes, +48V phantom power
Dynamics Processing: Yes (Compressor, Gate, De-Esser, Ducking, and more per channel)

Available Since: August, 2026
Item No.: 20502179
Local SKU: OS

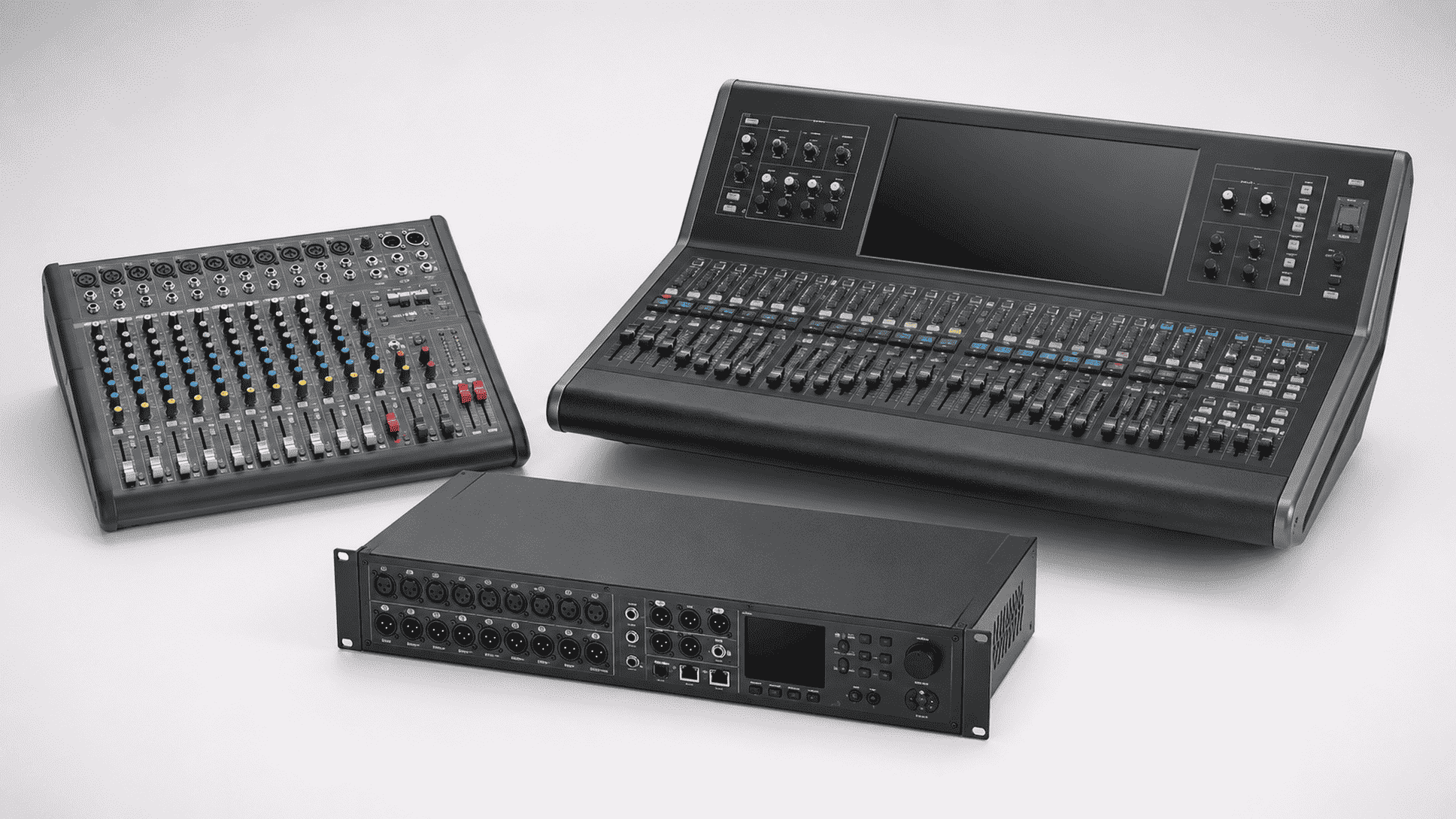

Compact Powerhouse: 72 Channels in a Single Bay

The DM7C packs an incredible 72 mixable channels into a compact, single-bay chassis that fits into spaces where other high-channel-count consoles can't. This makes it an ideal solution for touring, broadcast trucks, and venues where footprint is a critical concern, without sacrificing mixing power.

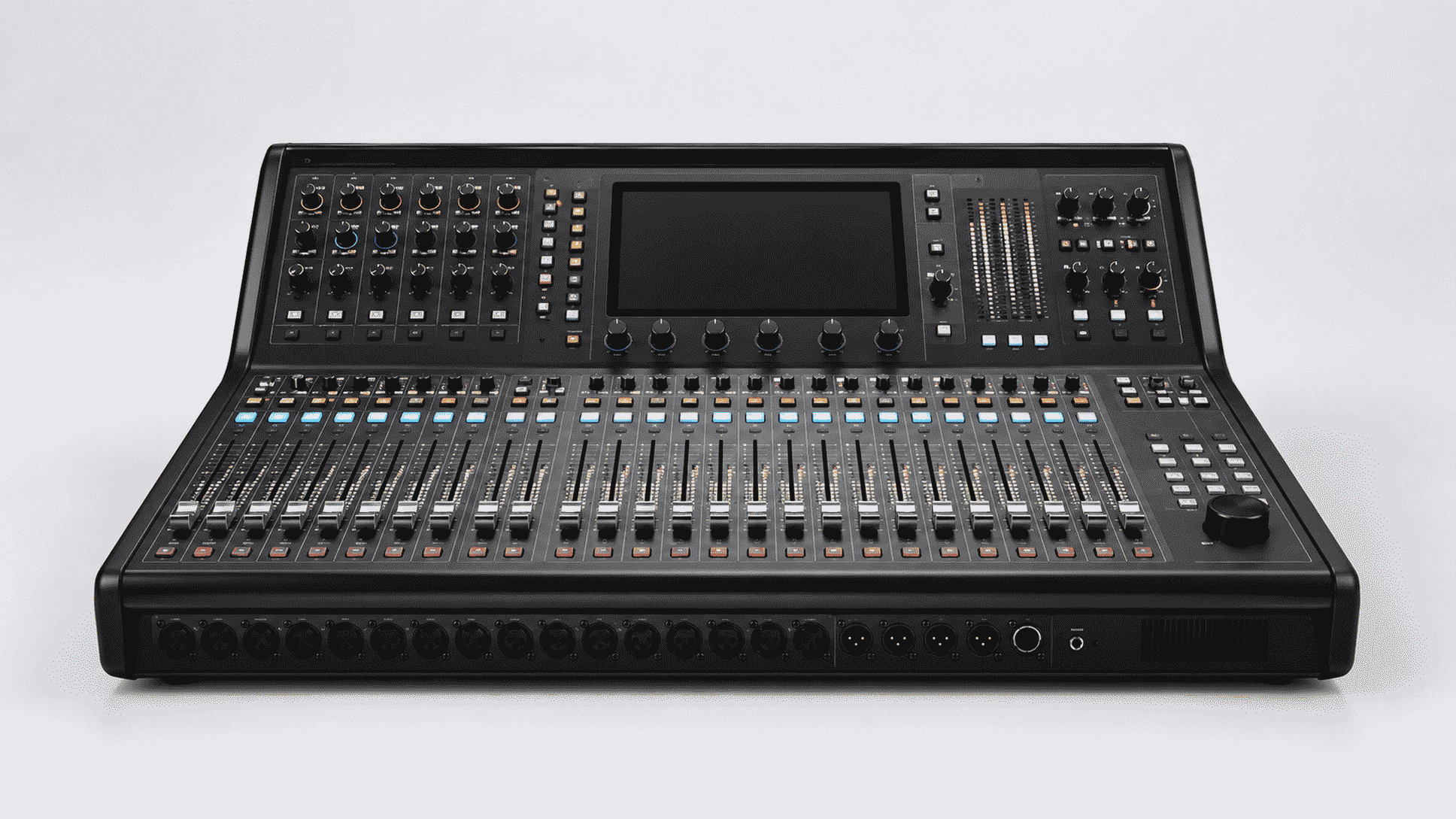

Advanced Connectivity: 144x144 Dante & 18x18 USB

Seamlessly integrate into any professional audio ecosystem with a built-in 144x144 channel Dante interface for high-channel-count audio networking. Additionally, the 18x18 USB audio interface allows for direct multitrack recording and playback with your DAW, making it a powerful studio centerpiece.

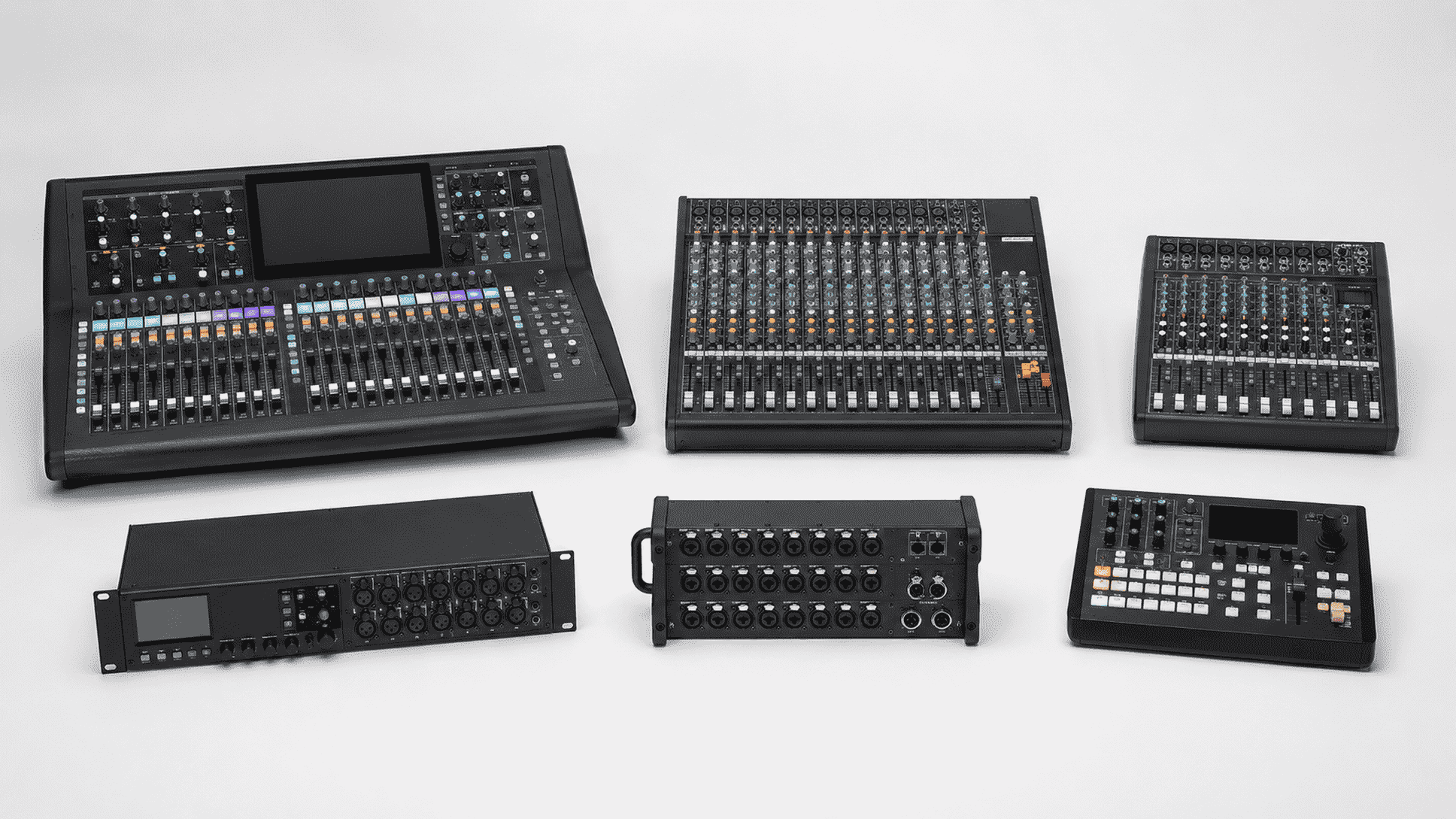

Intuitive, Fast Workflow with Triple Touchscreens

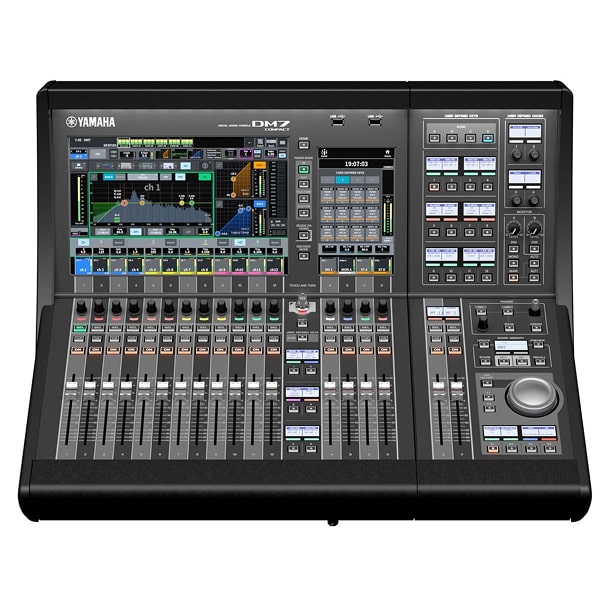

Navigate your mix with unprecedented speed and clarity using two large 12.1-inch multi-touch screens, a 7-inch utility screen, and Yamaha's acclaimed 'touch and turn' controls. Features like Split Mode, which creates two virtual mixers in one, and AI-assisted functions streamline the most complex workflows for a single operator.

BY THE NUMBERS

Technical Specifications

Hardware & Setup

Body & Build

Phantom PowerYes, +48V

Rack MountableYes

Fader Count16

Sampling Rate96

Remote ControlYes

Everything you receive

What's In The Box

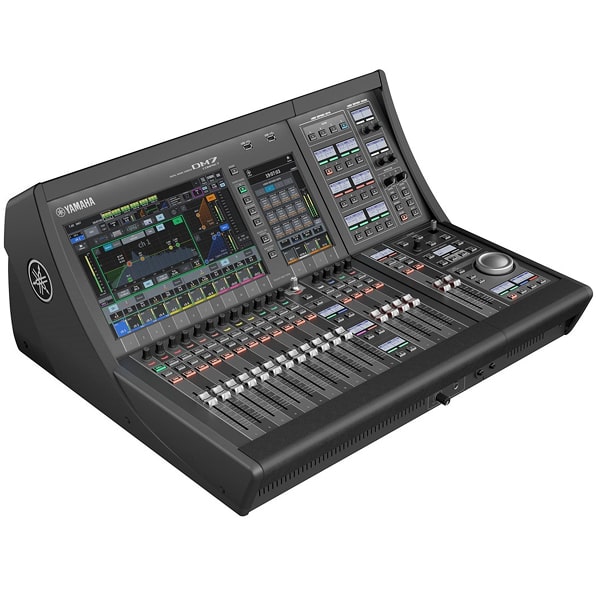

Yamaha DM7C 72-Channel Digital Mixing Console with Dante
Owner's Manual
Local Warranty Card

Expert answers

Questions & Answers

6 questions answered by aDawliah experts·avg response 2 hours

The DM7C features 16 high-quality analog microphone preamps on board. For larger setups, you can expand your input count significantly using the built-in Dante network to connect to stageboxes and other Dante-enabled devices.

Its workflow is built for speed and clarity, featuring two large 12.1-inch touchscreens, motorized faders, and Yamaha's 'touch and turn' knobs. Features like Split Mode and full scene recall allow for rapid configuration and control during complex events.

The DM7C comes loaded with a comprehensive suite of studio-quality DSP effects and processing, including classic Yamaha reverbs, compressors, and EQs. With 64 premium processing slots, you have ample power to shape your sound without external gear.

You have multiple options. You can record 18 channels directly to a computer via the USB audio interfe, or record up to 144 channels over the Dante network for full-scale multitrk productions. A simple 2-trk recording can also be made to a connected USB drive.

Absolutely. The console provides 48 flexible mix buses, which can be configured as stereo or mono aux sends for in-ear monitors, wedges, and other feeds, giving you extensive control over what eh performer hears.

Yes, you can control the mixer remotely using Yamaha's DM7 Editor software on a M or PC, or the DM7 StageMix app on an iPad for wireless control from anywhere in the venue.
