Why This Product

Product Highlights

Advanced Digital Beam Steering — This allows sound to be precisely focused on listening areas and kept away from reflective surfaces, dramatically improving speech intelligibility and tonal balance in reverberant spaces.
Integrated Dante Audio Networking — Seamlessly integrate the MSA12X into modern networked audio systems using the built-in Dante digital audio interface.
Articulated Array for Wide 160° Coverage — The twelve 2.25-inch full-range transducers are configured in Bose's proprietary Articulated Array design, providing exceptionally wide 160-degree horizontal coverage.
Onboard 600W (12 x 50W) amplifier and advanced DSP
Supports two independent beams per array with separate level and EQ control

Available Since: August, 2026
Item No.: 10010800
Local SKU: OS

Advanced Digital Beam Steering

Utilize advanced onboard DSP and multiple algorithms to digitally steer the vertical coverage of the loudspeaker. This allows sound to be precisely focused on listening areas and kept away from reflective surfaces, dramatically improving speech intelligibility and tonal balance in reverberant spaces like atriums and cathedrals.

Integrated Dante Audio Networking

Seamlessly integrate the MSA12X into modern networked audio systems using the built-in Dante digital audio interface. This simplifies cabling, reduces signal degradation over long runs, and provides flexible routing and control capabilities, making it ideal for large-scale installations.

Articulated Array for Wide 160° Coverage

The twelve 2.25-inch full-range transducers are configured in Bose's proprietary Articulated Array design, providing exceptionally wide 160-degree horizontal coverage. This ensures a consistent listening experience for a broader audience area from a single, slim-profile loudspeaker.

BY THE NUMBERS

Technical Specifications

Hardware & Setup

Body & Build

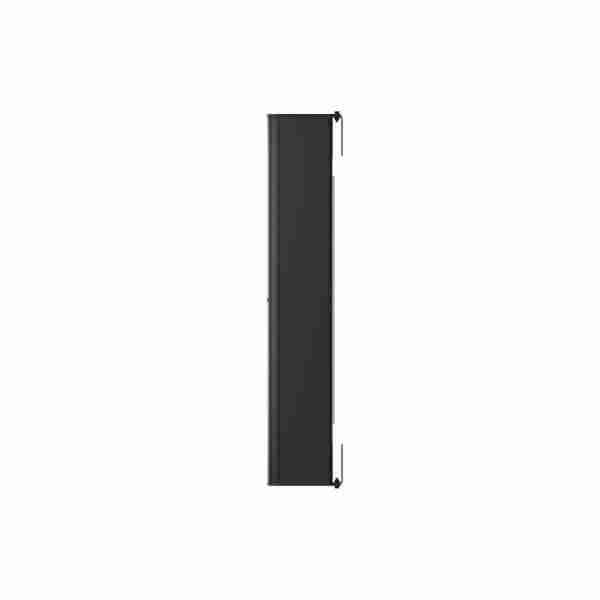

Mounting OptionsIntegrated mounting bracket with 90° horizontal yaw adjustment

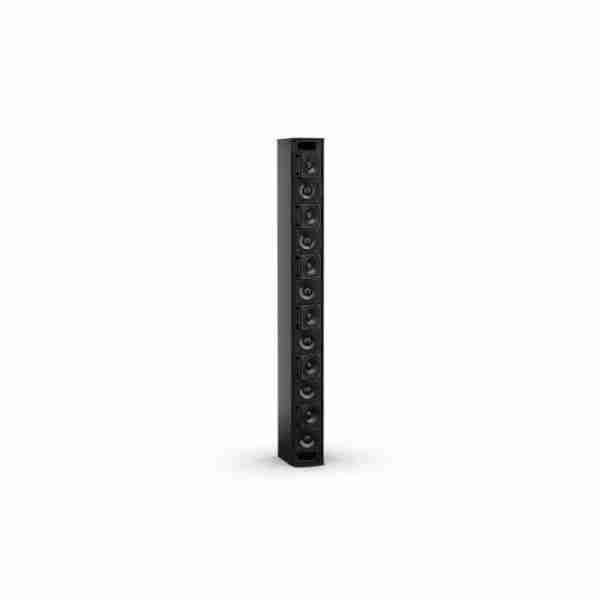

Driver Configuration12 x 2.25-inch full-range transducers

Amplifier ClassNot specified

Loudspeaker TypeActive Column Line Array

Woofer Size2

Everything you receive

What's In The Box

787856-4110_BOSE PANARAY MSA12X LDSPKR BLK - سماعة جدارية
Owner's Manual
Local Warranty Card

Bose Professional

The Maker

About Bose Professional

Bose Professional creates complete audio solutions for workplaces, hospitality, retail, education, houses of worship, and performance venues. Its loudspeakers, amplifiers, processors, and conferencing products are engineered as integrated systems, helping designers and installers deliver clear, consistent sound with elegant, space-conscious installations.

View All Bose Professional Products

Expert answers

Questions & Answers

6 questions answered by aDawliah experts·avg response 2 hours

No, the Panaray MSA12X is an active loudspeaker with 600 watts of built-in amplification and DSP. You only need to connect a line-level analog or Dante audio source.

It is specifically designed for acoustically challenging spaces with high ceilings or reflective surfaces, such as houses of worship, auditoriums, lecture halls, and transportation centers, where its beam-steering technology can maximize clarity.

It includes an integrated wall-mount bracket that allows for up to 90 degrees of horizontal yaw adjustment for flexible and secure installation.

Yes, you can connect any mixer or audio source with a line-level analog output. For more advanced systems, it features a Dante network connection for digital audio.

No, the Bose Panaray MSA12X is not weather-rated and is designed for indoor fixed installation applications only.

The loudspeaker and its integrated mounting bracket are included. Power cables, audio cables, and control software (Bose ControlSpace Designer) must be sourced separately.
