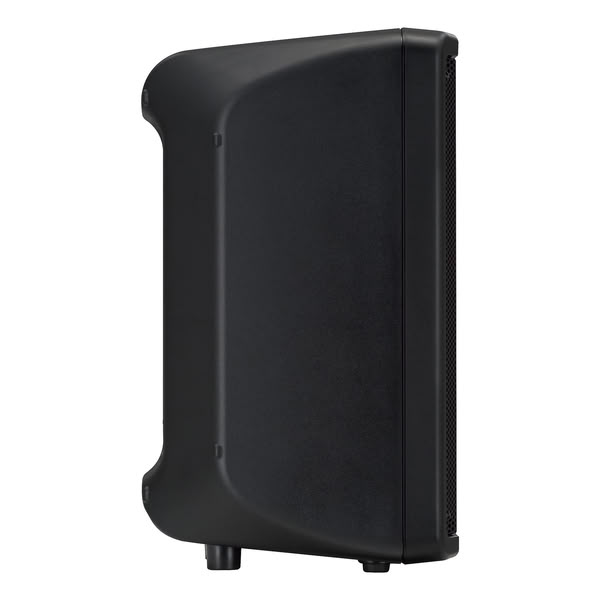

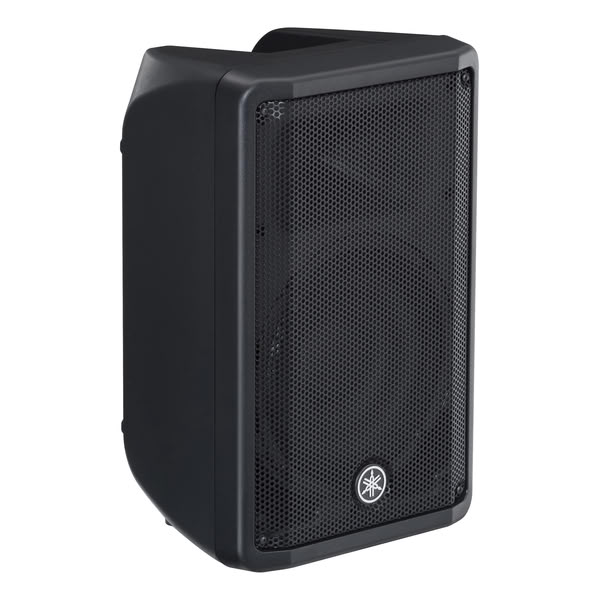

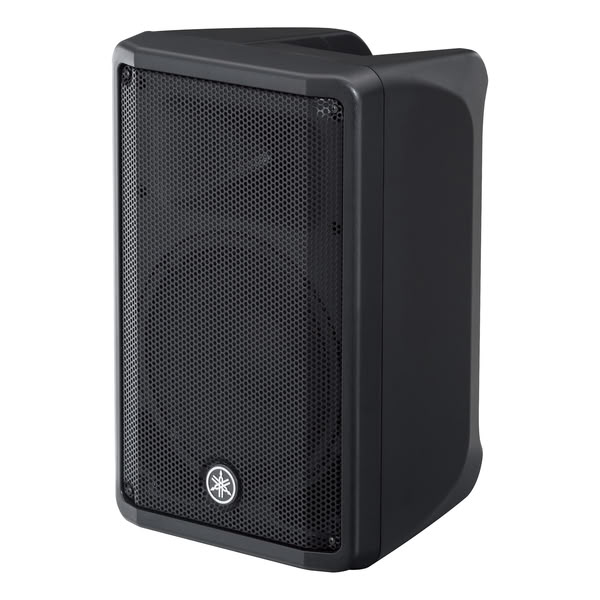

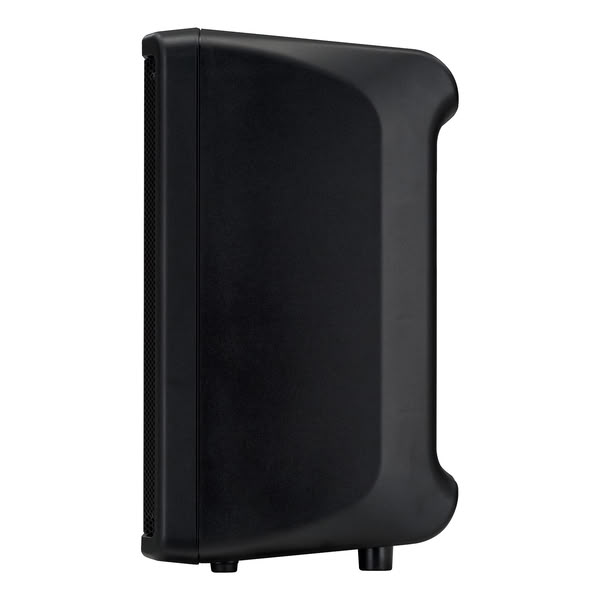

Yamaha CBR-10 700W 10 inch Passive Speaker
The CBR10 is the most compact model in its series. While delivering astonishing power for its size and weight, the CBR10 is ideal for both portable and installed applications.
The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that we've accrued over a long and storied history of making speakers of every kind.

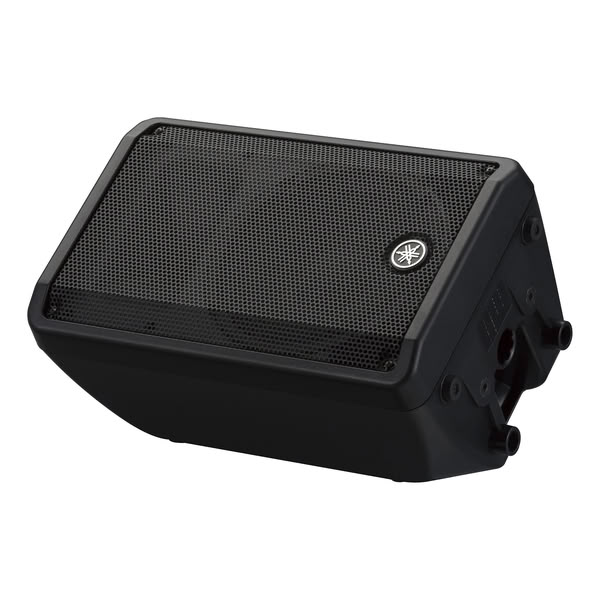

Combining a meticulous materials selection process, thorough customisation of the audio components, and a fresh, innovative approach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.
- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level
- Rugged, Highly Portable Enclosure Design
- Simple Connectivity
- Versatility for a Variety of Applications
|
|
|
|
|
|
|---|---|---|---|---|
| Speaker type | 2-way Speaker, Bass-reflex Type | 2-way Speaker, Bass-reflex Type | 2-way Speaker, Bass-reflex Type | |
| Frequency range (-10dB) | 46 Hz - 20 kHz | 48 Hz - 20 kHz | 50 Hz - 20 kHz | |
| Nominal coverage | H | 90° | 90° | 90° |
| V | 60° | 60° | 60° | |
| Components | LF | 15" Cone, 2.5" Voice Coil (Ferrite Magnet) | 12" Cone, 2" Voice Coil (Ferrite Magnet) | 10" Cone, 2" Voice Coil (Ferrite Magnet) |
| HF | 1.4" Voice Coil, Compression Driver (Ferrite Magnet) | 1.4" Voice Coil, Compression Driver (Ferrite Magnet) | 1" Voice Coil, Compression Driver (Ferrite Magnet) | |
| Crossover | 2.0 kHz | 2.1 kHz | 2.8 kHz | |
| Power rating | NOISE | 250W | 175W | 175W |
| PGM | 500W | 350W | 350W | |
| PEAK | 1000W | 700W | 700W | |
| Nominal impedance | 8Ω | 8Ω | 8Ω | |
| SPL | Sensitivity (1W; 1m on axis) | 96dB SPL | 96dB SPL | 94dB SPL |
| Peak (Calculated) | 126 dB SPL | 125 dB SPL | 123 dB SPL | |

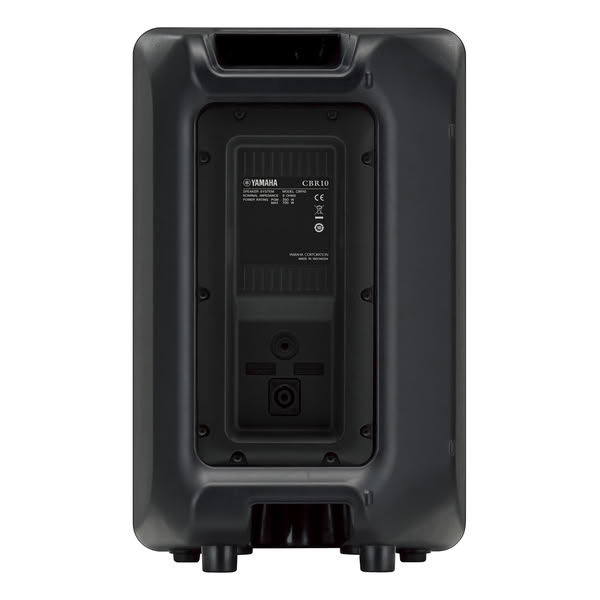

| I/O connectors | 1/4" Phone x 1, speakON NL4MP x 1 | 1/4" Phone x 1, speakON NL4MP x 1 | 1/4" Phone x 1, speakON NL4MP x 1 | |
| Cabinet material | Plastic | Plastic | Plastic | |
| Finish | Black | Black | Black | |
| Handle | Side x 2 | Side x 2 | Top x 1 | |
| Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | Bottom x 2 (Fit for M8 x 15mm Eyebolts) | |
| Pole socket | Φ35 mm Bottom x 1 | Φ35 mm Bottom x 1 | Φ35 mm Bottom x 1 | |
| Dimensions | W | 455mm (17.9") | 376mm (14.8") | 308mm (12.1") |
| H | 700mm (27.6") | 601mm (23.7") | 493mm (19.4") | |
| D | 378mm (14.9") | 348mm (13.7") | 289mm (11.4") | |
| Net weight | 17.7 kg (39.0 lbs) | 13.9 kg (30.6 lbs) | 9.4 kg (20.7 lbs) | |
details, specifications, and selling points of the Yamaha CBR-10 700W 10-inch Passive Speaker:
1. Design and Construction:
- Robust Design: The speaker features a sturdy and durable design with high-quality materials to withstand heavy use.
- Built-in Handle: It has a built-in handle for easy transportation and setup.
2. Sound Performance:
- Powerful and Clear Sound: The speaker delivers up to 700 watts of power for a strong and clear sound output.
- Wide Frequency Response: It covers a wide frequency range from 50 Hz to 20 kHz to provide diverse audio details.
- Multi-Directional Design: Allows sound to disperse evenly in all directions for consistent sound coverage.
3. Technical Specifications:
- Speaker Diameter: 10 inches (25 cm).
- Power Handling: 700 watts (program).
- Impedance: 8 ohms.
- Frequency Range: 50 Hz - 20 kHz.
- Coverage Angle: 90 degrees (horizontal) x 60 degrees (vertical).
4. Compatibility and Connectivity:
- Speakon Input and 1/4-inch Input: Provides flexible connection options to be compatible with various audio equipment.
- Compatible with Sound Systems: Can be used as part of a multi-channel sound system or in standalone portable applications.
5. Selling Points:
- High Sound Power: Provides 700W power handling to meet demanding audio requirements.
- Durable Design: The robust and durable design features high-quality materials to withstand intensive use.
- Wide Compatibility: Can be connected to different audio equipment using Speakon and 1/4-inch inputs.
- Equal Sound Coverage: The multi-directional design ensures even sound distribution in all directions.
