Yamaha DBR-15 Powered Active Loudspeaker

2,542 SAR

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups.

Availability IN STOCK

SKU 20500806


Availability in

TRUSTED FREE SHIPPING

SECURE SHOPPING


Yamaha Powered Loudspeaker DBR-15

DBR series

POWER TO PLAY

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10”, 12” and 15” models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you’re powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

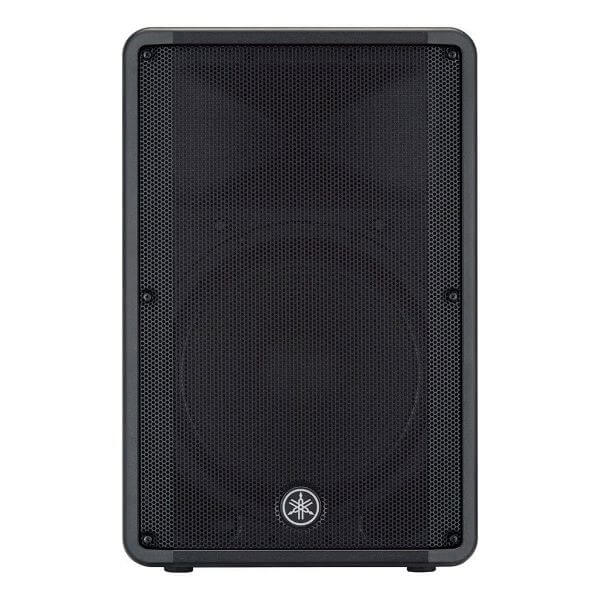

DBR15 15″ 2-way Powered Loudspeaker

The DBR15 achieves best-in-class SPL of up to132dB and delivers the lowest frequency in its lineup. The DBR15 delivers outstanding performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power.



DBR15

DBR12

DBR10
Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type 2-way, Bi-amp powered speaker, Bass-reflex type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 50Hz – 20kHz 52Hz – 20kHz 55Hz – 20kHz
Nominal coverage H 90° 90° 90°
V 60° 60° 60°
Components LF Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite Diameter:12" cone, Voice Coil:2", Magnet:Ferrite Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
HF Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter) 2.1kHz: FIR-X tuning™ (linear phase FIR filter) 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
Maximum output level (1m; on axis) 132dB SPL 131dB SPL 129dB SPL
I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF D-CONTOUR: FOH/MAIN, MONITOR, OFF D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds Fan cooling, 4 speeds Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 74W(1/8 Power Consumption), 18W(Idle) 74W(1/8 Power Consumption), 18W(Idle) 60W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic Plastic Plastic
Finish Black Black Black
Handle Side x 2 Side x 2 Top x 1
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) Bottom x 2 (Fit for M8 x 15 mm eyebolts)
Pole socket 35mm (Bottom x 1) 35mm (Bottom x 1) 35mm (Bottom x 1)
Dimensions W 455mm (17.9") 376mm (14.8") 308mm (12.1")
H 700mm (27.6") 601mm (23.7") 493mm (19.4")
D 378mm (14.9") 348mm (13.7") 289mm (11.4")
Net weight 19.3 kg (42.6 lbs) 15.8 kg (34.8 lbs) 10.5 kg (23.2 lbs)
