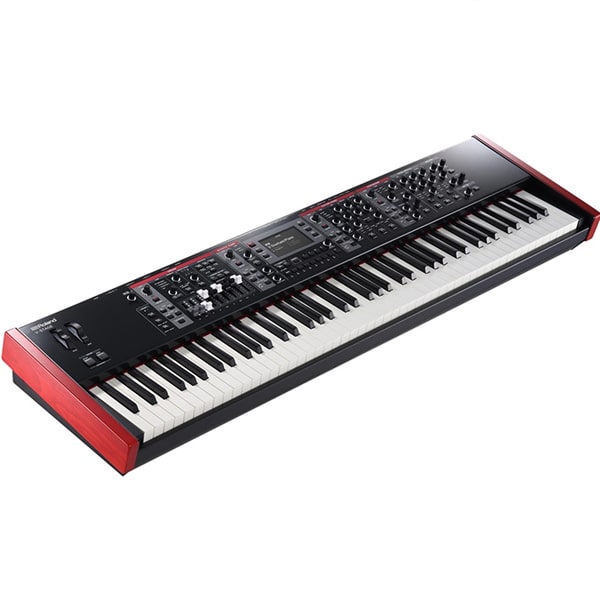

Roland V-STAGE88 Synthesizer

Keyboard

88 keys with Escapement and Ivory Feel

Scenes

512 (including pre-loaded registrations)

Scene Chains

128

Effects

Multi-Effects: 16 systems, 93 types
Chorus: 9 types
Reverb: 7 types

External memory

USB flash drive (supports USB 2.0 Hi-Speed flash memory: Sold separately)

Controllers

Assignable Wheel x 2
Assignable Switch x 2

Display

Graphic LCD 4.3 inch

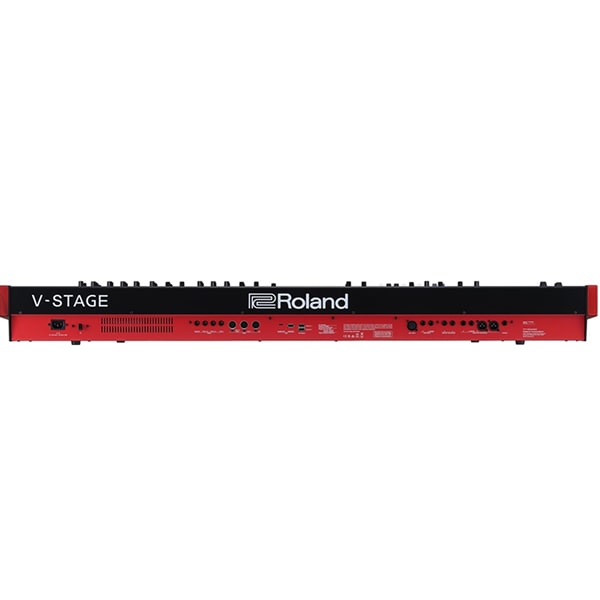

Connectors

PHONES jack: Stereo 1/4-inch phone type
MAIN OUT (L, R) connectors: XLR type
MAIN OUT (L/MONO, R) jacks: 1/4-inch TRS phone type
SUB OUT (L, R) jacks: 1/4-inch TRS phone type
LINE INPUT (L/MONO, R) jacks: 1/4-inch phone type jacks
MIC INPUT connector: XLR type
PEDAL (HOLD,CTRL1,CTRL2,CTRL3) jacks: 1/4-inch TRS phone type
MIDI (IN, OUT1, OUT2/THRU) connectors
USB COMPUTER port: USB Type-C(R) (Audio/MIDI Class Compliant)
USB MEMORY port: USB A
2 x External Device Port(USB A):Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
AC IN jack

Power consumption

30 W

Power consumption when in OFF mode (when the power automatically turns off): 0.3 W

Accessories

Owner's Manual
Power cord

Options (sold separately)

Keyboard stand:
KS-G8B, KS-13, KS-11Z
Piano pedal: RPU-3
Damper pedal: DP-10
Pedal switch: DP-2
Expression pedal: EV-5
USB flash drive (*)
* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.

Width

1,331 mm
52-7/16 inches

Depth

*353 mm
13-15/16 inches

Height

143 mm
5-11/16 inches

Weight

21.8 kg
48 lbs 13 oz
