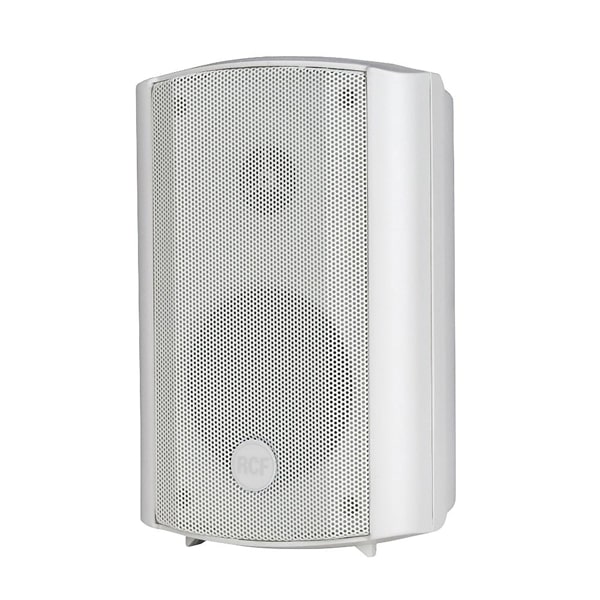

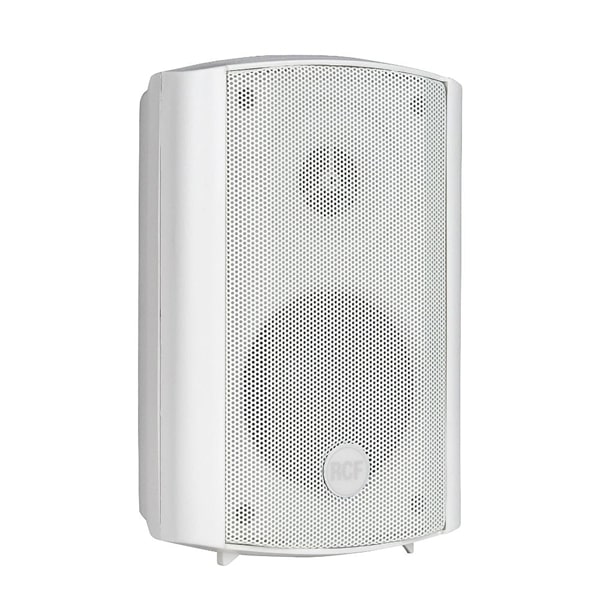

RCF DM 41 TWO-WAY COMPACT SPEAKER -White
- 3.5" woofer with 1'' dome tweeter
- Power selectable (100 V): 15 W – 7.5 W – 5 W – 2.5 W – 1.25 W
- 87 dB sensitivity
- Colour white RAL 9002 and black RAL 9005
Features
- 3.5" woofer with 1'' dome tweeter
- Power selectable (100 V): 15 W – 7.5 W – 5 W – 2.5 W – 1.25 W
- 87 dB sensitivity
- Colour white RAL 9002 and black RAL 9005
- Plastic body UL 94 V0, steel grille
- Protection grade IP 55

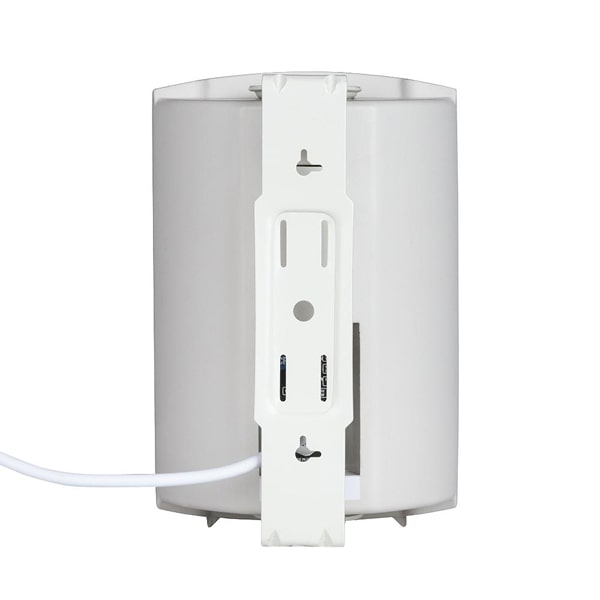

DM 41 is a compact two way speaker designed for constant voltage systems. The speaker provide natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music applications. Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side. The enclosure includes a protective perforated grille and an accessory for the wall mounting.
Specifications
|
Frequency Response (-10dB) |
100 Hz ÷ 20000 Hz |
|
Max SPL @ 1m |
102 dB |
|
Horizontal coverage angle |
180° |
|
Vertical coverage angle |
170° |
|
System Sensitivity |
87 dB |
|
Amplification |
Full Range |
|
Nominal Impedance |
8 ohm |
|
Power Handling |
15 W |
|
Peak Power Handling |
60 W PEAK |
|
Crossover Frequencies |
2.5 Hz |
|
Input connectors |
Cable |
|
Output connectors |
Cable |
|
Constant Voltage Transformer |
100 V |
|

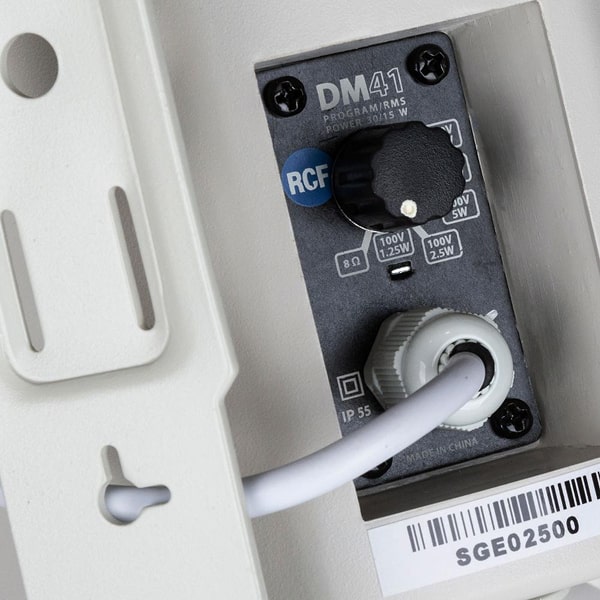

Power selection 1 |
15 W - 667 ohm |
|
Power selection 2 |
7.5 W - 1333 ohm |
|
Power selection 3 |
5 W - 2000 ohm |
|
Power selection 4 |
2.5 W - 4000 ohm |
|
Power selection 5 |
1.25 W - 8000 ohm |
|
Cabinet/Case Material |
Plastic |
|
Hardware |
Aluminium U bracket |
|
Grille |
Aluminium |
|
Color |
White - RAL 9002, Black - RAL 9005 |
|
Height |
197 mm / 7.76 inches |
|
Width |
130 mm / 5.12 inches |
|
Depth |
115 mm / 4.53 inches |
|
Weight |
1.7 kg / 3.75 lbs |
