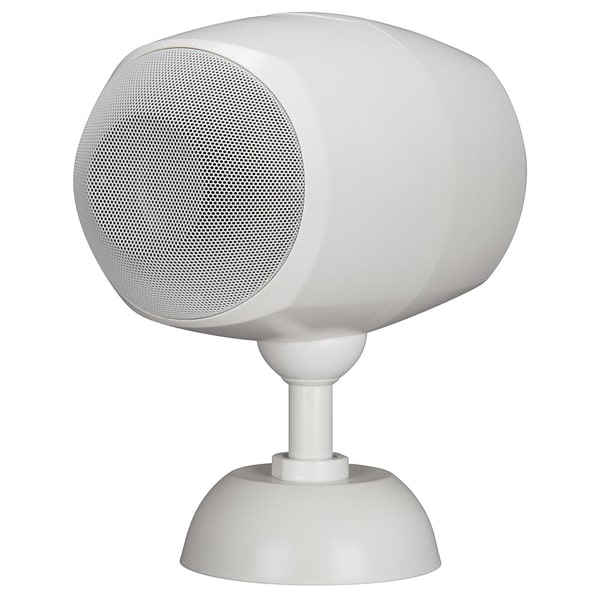

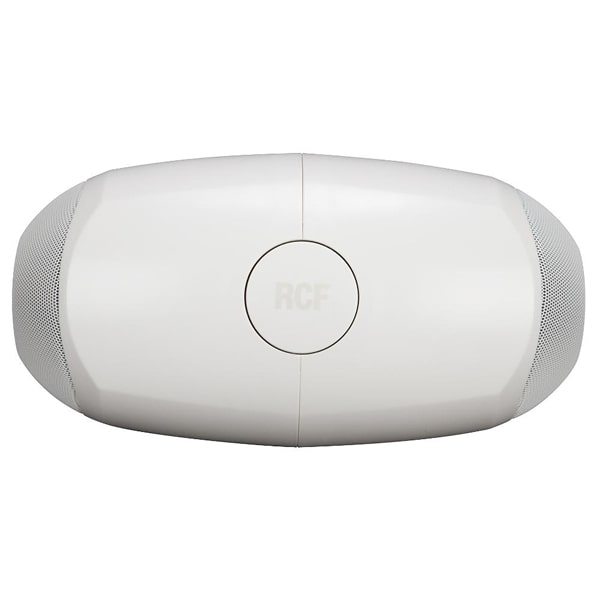

RCF BD 5EN BIDIRECTIONAL SOUND PROJECTOR
- 2 x 5" fullrange transducers.
- Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W.
- 86 dB sensitivity.
- Colour white RAL 9016.
Features
- 2 x 5" fullrange transducers.
- Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W.
- 86 dB sensitivity.
- Colour white RAL 9016.

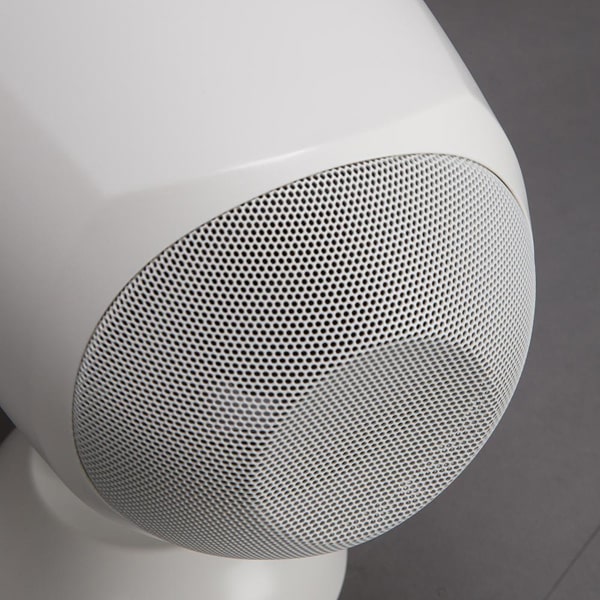

- Flameproof ABS body, steel grille.

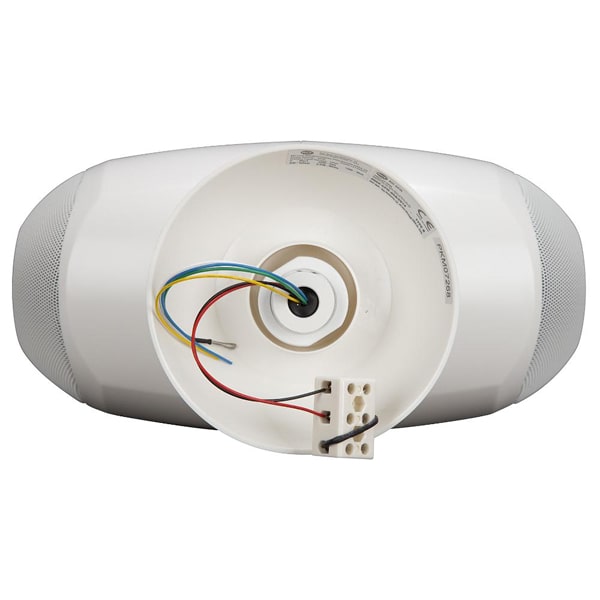

- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP65.
BD 5EN is a weatherproof bidirectional sound projector suitable for all those installations where high intelligibility for alarm messages broadcasting and great sound reproduction quality are required. Thanks to its IP65 protection grade, it can be installed both indoor and outdoor. Moreover, a modern and endearing design makes it the perfect product for environments where projectors are intended also as architectural elements and contribute to improve global aesthetics.
Specifications
|
Frequency Response (-10dB) |
150 Hz ÷ 18000 Hz |
|
Max SPL @ 1m |
99 dB |
|
Max SPL @ 4m |
87 dB |
|
Coverage angle |
210° |
|
System Sensitivity |
86 dB |
|
System Sensitivity 1W @ 4m |
74 dB |
|
Amplification |
Full Range |
|
Power Handling |
20 W |
|
Peak Power Handling |
80 W PEAK |
|
Protections |
Thermal fuse |
|
Recommended Amplifiers |
DMA 504, DMA 162, DMA 162P, DXT 3000, DXT 4000, DXT 7000 |
|
Input connectors |
Ceramic screw terminals |
|
Output connectors |
Ceramic screw terminals |
|
Constant Voltage Transformer |
100 V |
|
Power selection 1 |
20 W - 500 ohm |
|
Power selection 2 |
10 W - 1000 ohm |
|
Power selection 3 |
5 W - 2000 ohm |
|
Power selection 4 |
2.5 W - 4000 ohm |
|
Cabinet/Case Material |
ABS |
|
Hardware |
Wall mount metal plate |
|
Grille |
Steel |
|
Color |
White - RAL 9016 |
|
Height |
183 mm / 7.2 inches |
|
Width |
332 mm / 13.07 inches |
|
Depth |
176 mm / 6.93 inches |
|
Weight |
3.59 kg / 7.91 lbs |
