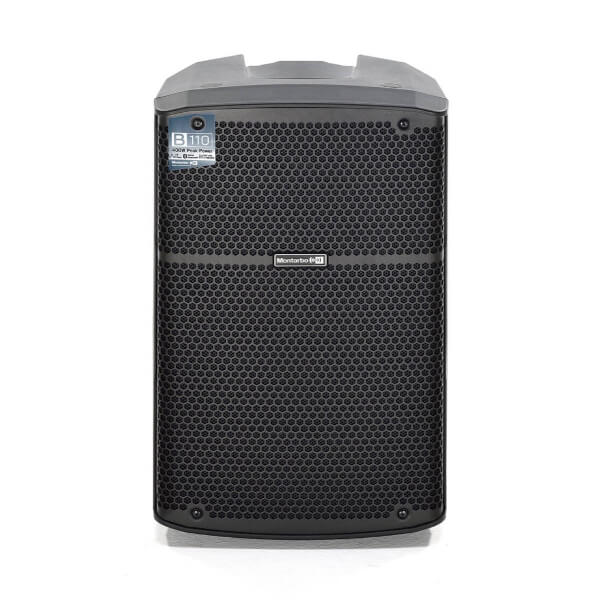

B110 is a versatile, portable, powerful active speaker suitable for small to medium venue applications. The bass-reflex cabinet is equipped with a 10” woofer and a 1.35 ”compression driver boosted by a 400 W amp module. B series’ …
System type | Two way bass reflex |
MAX SPL | 126 dB |
Frequency Response (-10dB) | 60Hz-20KHz |
HF | 1.35” (34mm) driver |
LF | 10” – 2” V.C (50mm) |
Coverage (H x V) | 90° H x 60° V |
Crossover frequency | 1.8 kHz |
Amplifier class | D + A/B |
RMS Power | 200 W |
Peak Power | 400 W |
Cooling | Convection |
DSP | 28/56 Bit |
Bluetooth® | 5.0 (stereo) |

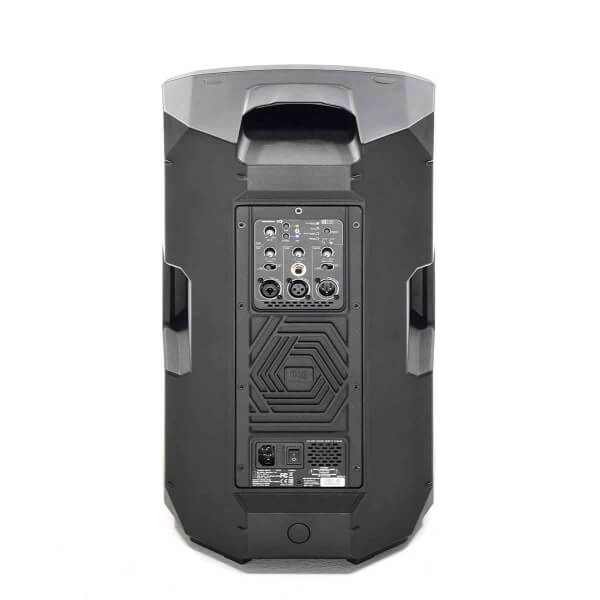

Connectors I/O | CH1: Combo CH2: XLR-F + jack 6,35mm (1/4”) AUX IN: mini-jack 3,5mm LINE OUT: XLR-M |
Controls | Ch. levels, MAIN level, PRESET button, Channel sens. LINK/MIX selection |
Cabinet | Polypropilene |
Dimensions | 310 x 524.5 x 280 mm (12.2” x 20.6” x 11”) |
Weight | 11.3 kg (24.92 lb) |
Advanced Functions | FIR Filters |
