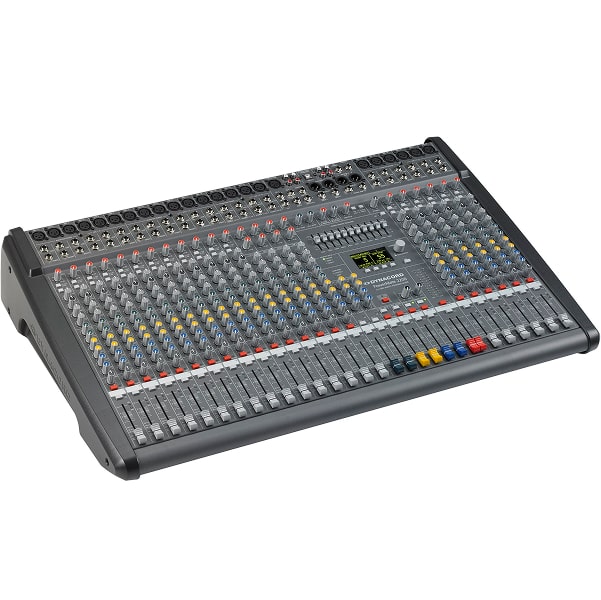

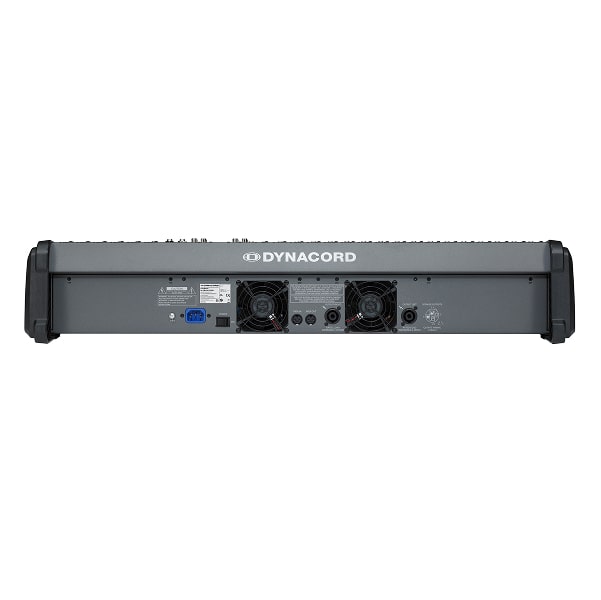

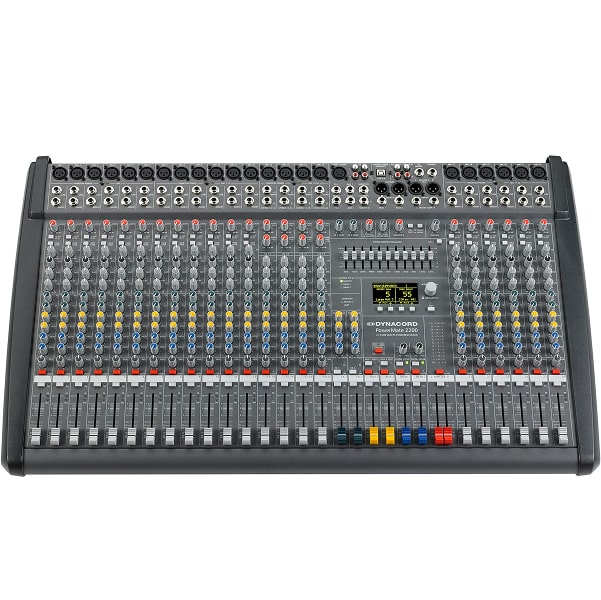

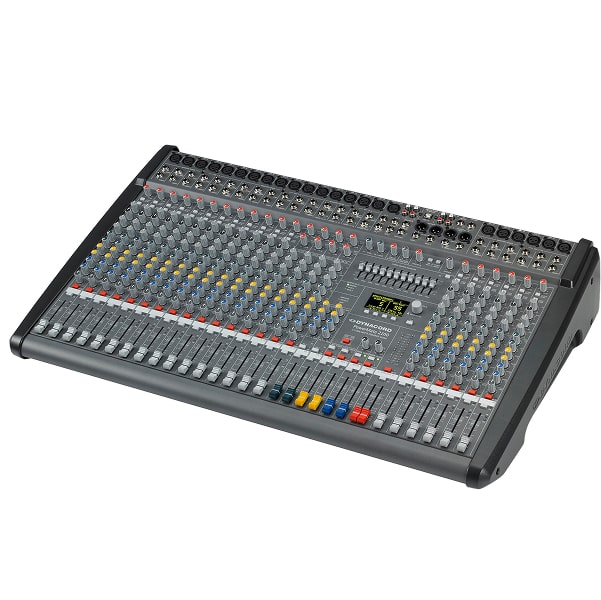

Dynacord POWERMATE 2200-3 22‑Channel Compact Power Mixer

Overview:
The Dynacord POWERMATE 2200-3 is an intuitive 22-channel (18 Mic/Line + 4 Mic/Stereo-Line) compact power mixer featuring a very powerful and reliable amplifier with 2 x 1,000 Watts / 4 Ohms. It includes 2 high-quality editable effects (100 factory + 20 user presets) and a professional 4x4 24-bit / 96 kHz USB interface with MIDI. Ideal for demanding applications in the audio sector, this mixer combines high-quality components with advanced features for both live and studio use.

Key Features:

• 22 Input Channels (18 Mic/Line + 4 Mic/Stereo-Line)

• 2 High-Quality Digital Effects Processors (100 Factory + 20 User Presets)

• Professional 4x4 24-bit / 96 kHz USB Audio Interface

• MIDI Interface for Integration with Instruments

• 11-Band Stereo Graphic Equalizer

• Dust-Protected Faders and Balanced XLR Outputs

• Optional Gooseneck Lamp

• Footswitch and MIDI Remote Control

Amplifier:

• 2 x 1,000 Watts / 4 Ohms

Effects:

• Dual stereo 24/48-bit multi-effects processors

• 100 Factory + 20 User presets

• Tap Delay

Digital Audio Interface:

• 4 In / 4 Out

• 24-bit, 44.1 / 48 / 88.2 / 96 kHz AD/DA Conversion

• USB 2.0 Type B

• Compatible with PC / Mac

Mixer Controls & Specs:

• MIC Gain Mono: 0 to +60 dB, Stereo: +10 to +60 dB

• Line/CD/USB Gain: -10 to +20 dB

• Frequency Response: 15 Hz to 70 kHz (-3 dB)

• CMRR MIC Input 1 kHz: > 80 dB

• Maximum Levels: MIC +21 dBu, Mono Line +41 dBu, Stereo Line +30 dBu

Dimensions & Weight:

• Width: 818.5 mm

• Height: 155.0 mm

• Depth: 498.5 mm

• Weight: 14.5 kg

Optional Accessories:

• Dust Cover: DC-SH2200-3

• Gooseneck Lamp, 12V/5W, 12”, XLR 4 pol.: DC-LITLITE-4P

• FS 11 Footswitch with LED: DC-FS11
