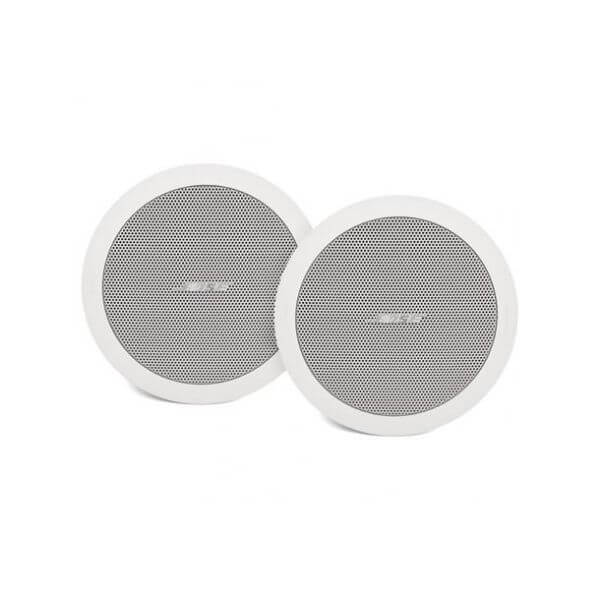

the Bose FreeSpace FS2C In-Ceiling loudspeaker:
Features:
- Full-range 2.25-inch transducer
- Low-frequency range down to 83 Hz
- 16-ohm and 70/100V operation
- Front baffle-mounted tap settings and front-baffle audio connections
- Shared voicing across all FS models for consistent tonal quality
- Transducers offer clear voice reproduction and smooth response for background music
- In-ceiling, surface-mount, and pendant-mount options for tailored mix-and-match installations
- Available in black and white enclosures with removable logos
- Euroblock inputs and front-baffle input location on in-ceiling models
- UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications
- Bose sound quality with significant upgrades in durability, design, and ease of installation
- Ideal for almost any commercial space, including background music and voice announcement applications
- Five loudspeaker models with two distinct levels of sound to choose from
- Customizable systems with tailored mix-and-match installations
- Full suite of accessories available to handle a wide range of applications and mounting options
- UL-listed for use in fire alarm and signaling systems in life safety applications
Specifications:
- Dimensions (H x Dia): 4.3" x 8.3" (109 mm x 210 mm)
- Weight: 3.5 lbs (1.6 kg)
- Frequency Response (+/-3 dB): 95 Hz - 17 kHz
- Frequency Range (-10 dB): 83 Hz - 19 kHz
- Nominal Dispersion: 125° conical
- Sensitivity (SPL / 1 W @ 1 m): 86 dB
- Maximum SPL @ 1 m: 99 dB (105 dB peak)
- Nominal Impedance: 16 ohms (transformer bypassed)
- Recommended Amplifier Power: 16 W RMS / 64 W peak
- Transformer Taps (70/100V): 1 W, 2 W, 4 W, 8 W, 16 W
- Transducer: 2.25" (57 mm) full-range driver
- Input Connectors: Euroblock
- Environmental: Indoor use only, UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications.
