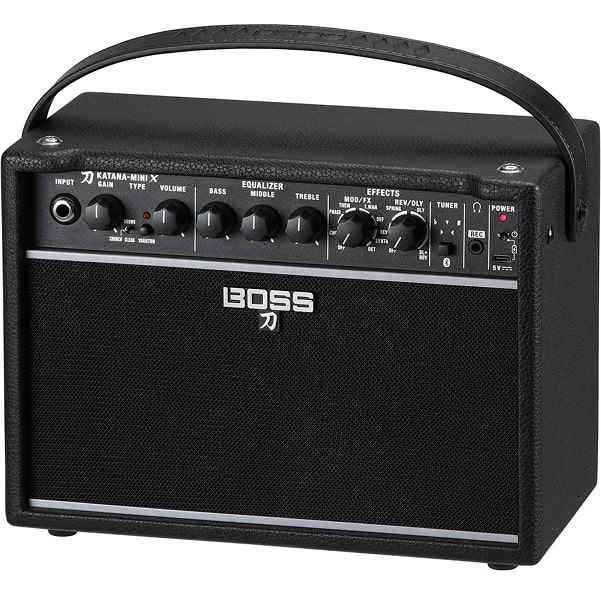

Katana-Mini X delivers acclaimed Katana tones in a fun and inspiring amp for daily practice and jamming. Evolving on the features of the popular Katana-Mini, it offers six versatile analog sound options and two simultaneous effects, housed in a robust wood cabinet for a bigger and fuller guitar experience. Katana-Mini X also provides many enhancements to energize your playing sessions, including an onboard tuner, front-facing panel controls, an internal rechargeable battery, and onboard Bluetooth® for streaming music from your smartphone.
While its footprint is small, the Katana-Mini X sound is anything but. The multi-stage analog gain circuit features a sophisticated, detailed design that produces highly expressive tones with immersive depth and dimension, supported by a sturdy wood cabinet and custom 5-inch speaker for a satisfying feel and rich low-end response. Our no-compromise Tube Logic design approach brings you full-bodied sounds for every genre, including searing high-gain solo sounds and tight metal rhythm tones dripping with saturation and harmonic complexity.

Katana-Mini X features versatile amp characters derived from our stage-class Katana amp series. Three core amp sounds are available, along with a tonal variation that’s accessible with a panel switch. One variation is an uncolored clean sound for using Katana-Mini X with an acoustic-electric guitar or bass.

Katana-Mini X comes packed with powerful tools to take your music to the next level. The convenient rechargeable battery allows you to move to different rooms or outdoor locations without the hassle of AC power. Bluetooth support lets you jam with music from your mobile device and use the amp as a portable speaker for casual music playback. The onboard guitar/bass tuner is always at the ready with a quick button press. And when you want to play quietly, you can plug in headphones and enjoy high-quality tones with built-in cabinet simulation and stereo effects.

Katana-Mini X features a traditional analog tone stack for natural sound shaping using familiar bass, mid, and treble controls. MOD/FX and REV/DLY sections are also on hand, each with a diverse range of BOSS effects and fast sound tweaks via single-knob controls that adjust multiple parameters at once. Both sections can be used simultaneously, letting you create combinations such as tremolo and spring reverb, phaser and delay, and many others.

| Amp Type | Core Sound | Variation |
|---|---|---|
| Brown | Signature Katana high-gain sound inspired by the finest hard rock tones of all time. | Provides tighter lows and crisper highs for precision high-gain riffing. |
| Crunch | A fat and expressive mid-gain sound that responds to volume changes and picking dynamics. | Adds smooth yet cutting high-end for more aggressive playing styles. |
| Clean | Use the Gain knob to go from natural clean to slightly driven sounds. This amp type also provides a great platform for external effects. |
A flat amp tone that’s ideal for acoustic-electric guitar and electric bass.
|
Rated Power Output:
10 W
Nominal Input Level:
INPUT: -10 dBu (1 M ohm)
Speaker:
12 cm (5 inches)
Power Section:
POWER switch
TYPE switch
VARIATION button
Volume & Gain:
GAIN knob
VOLUME knob
Equalizer:
BASS knob
MIDDLE knob
TREBLE knob
Effects:
MOD/FX knob
REV/DLY knob
Tuner/Bluetooth:
TUNER/Bluetooth button
POWER
VARIATION
TUNER/Bluetooth
INPUT jack: 1/4-inch phone type
PHONES/REC jack: Stereo mini phone type
5V DC IN port: USB Type-C®
Profile Supported: A2DP (Audio)
Rechargeable nickel-metal hydride battery
Current Draw: 1500 mA
Battery Life (approx.): 10 hours (continuous use)
Note: Varies by usage conditions.
Charging Time: Approx. 3 hours
Use a USB port or USB power adaptor (5V, 2A or higher).
“Read Me First” Leaflet
USB Type-C® to USB Type-A charging cable
Width: 287 mm (11-5/16 inches)
Depth: 145 mm (5-3/4 inches)
Height: 200 mm (7-7/8 inches)
Weight (with strap): 2.7 kg (6 lbs)
